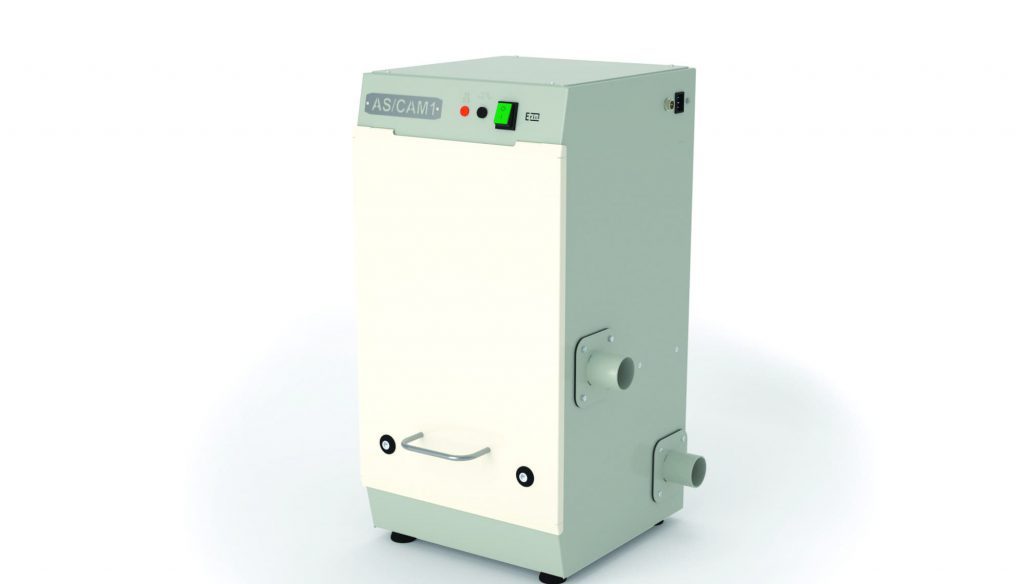

The AS/CAM1 is suitable for connection to a single milling machine. It is equipped with a new generation of universal motor, 1000 W single phase 230V, that doesn’t need replacement of carbon brushes, with an average life of approximately 2500 hours.
The unit has a main sack filter, with a surface area of 7300 cm² and a secondary cartridge filter of 3650 cm².
The two filters together comply with grade “H” of filtration under the EN-60335-2-69 standard.
The air is discharged by mean of a 5 cm pipe direct to atmosphere , reducing the air temperature and recycling of untreated dust. Suction activation can be manual, or on request, automatic using a interface designed for any milling machine. The unit is equipped with a sensor that check the status of the filters and in case of filters full, activates a red warning light.
Technical feature:
· Noise: 65 dBa.
· Dimensions: 41x43x71H cm (allow 15 cm space on the right for connections).
Main Accessories:
CICLONE
AS/B12
AS/B24
AS/B220
